40 years of knowledge and experience

Experts for Filter Testing

Explore our wide range of innovative products showcased at FiltXpo 2025. Here, you will find detailed information about all of our featured products, designed to meet the highest standards of air quality and filtration technology. Discover how our solutions can benefit your business and help you stay ahead in the industry.

Invitation to join our short course:

We invite you to participate in our short course on [date] in preparation for the event.ย

Topics include a comprehensive overview of relevant filter testing standards and demonstrations of key systems:

  • Full Element Testing with the FET System
    Covers standards like ISO 29463-5, ISO TS 11155, and ISO 16890 and measures filter efficiency and dust holding capacity across a range of particle sizes (20 nm to 10 ยตm).
  • HEPA and ULPA Filter Scanning wit the LFT 3000
    Automated leakage scanning solution tailored to your filter sizes and air flow, in line with ISO 59463.
  • Flat Sheet Media Testing
    Measure dust holding capacity, pressure drop, and efficiency by particle size according to ISO 16890, ISO 11155-1, and ISO 5011.

  • Our newst test rig: PMFT 4000
    The PMFT 4000 now featuring two Promoยฎ Sense aerosol sensor for precise detection in small filter holders according to

    • US 42 CFR 84, GB2626, JMOL
    • EN 143/EN149 referring to EN13274-7
    • ISO 23328-1 (and more)
Register now

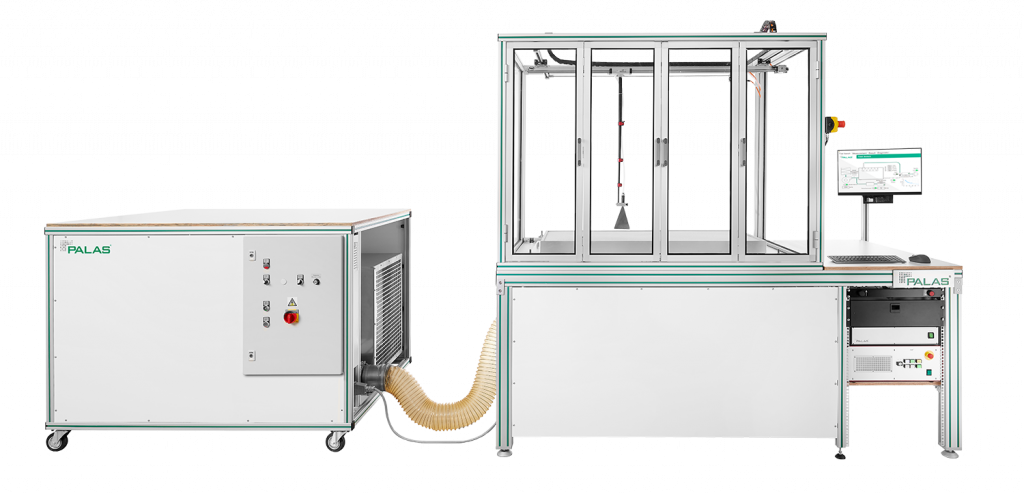

LFT 3000

LFT 3000
Product Page
LFT System Brochure

Advantages & Use

  • Designed to meet the requirements of ISO 29463-4 andย ISO 29463-5 for HEPA and ULPA filter testing
  • Automatic scanning for precise detection of leakage points, ensuring the filterโ€™s overall efficiency
  • Volume flow control from 100 to 5,000 mยณ/h
  • Adaptable to various filter sizes
  • Automatic test report
  • Easy installation of filter elements

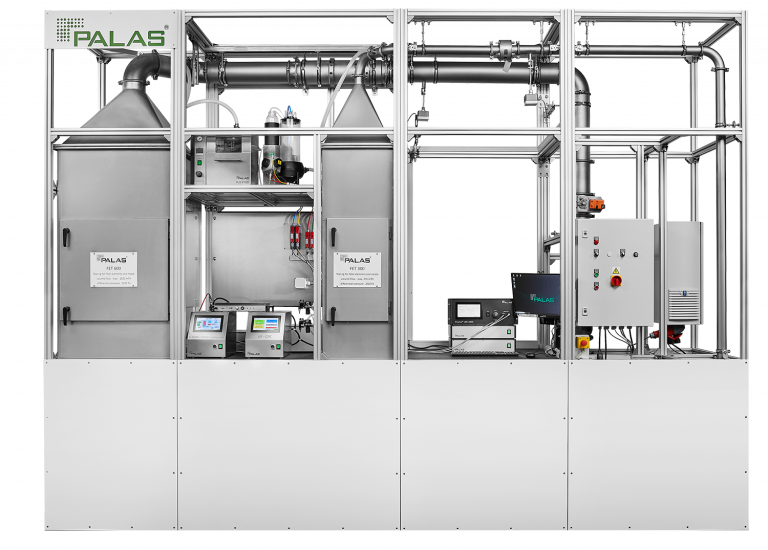

FET System

FET System
Product Page
FET System Brochure

Advantages & Use

  • Measurement according to ISO 29463-5 and 29463-3, as well as ISO 16890 (ISO ePM1; ISO ePM2.5; ISO ePM10) in one channel possible (depending on model)
  • Dual channels on request
  • Particularly wide range of application for separation efficiency measurement from 0.02 to 40 ยตm
  • Measurement of dust holding capacity possibleย
  • Customization of filter adapters, flow channel and measuring ranges possible for optimal test performance
  • Modular compact design for small filter elements, low space requirement
  • Calibration of raw gas/pure gas not necessary, because only one sampling and one measuring device is used
  • Logged results based on relevant standards

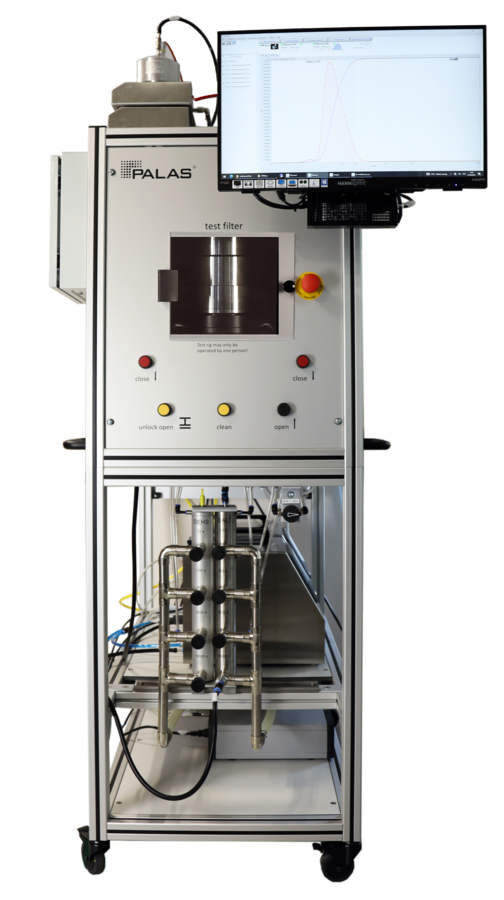

MFP Nano plus 4000

MFP Nano plus 4000
Product Page

Advantages & Use

  • Real-time determination of the fraction separation efficiency above 20 nm
  • Measuring time for determining the fraction separation efficiency is halved by measuring the particle concentration in the raw and clean gas.
  • Combining two UF-CPC versions, the UF-CPC for the highest concentrations, up to 2,000,000 particles/cm3ย (single count mode) in the raw gas and the UF-CPC 50 for top counting rates at low concentrations in the clean gas, corresponds to a dilution factor of 1:200.
  • Internationally comparable measurement results in accordance with DIN EN 1822-3 and ISO 29463-3
  • Easy to operate
  • Cleaning can be performed independently by the customer
  • Short set-up times, fast throughput times

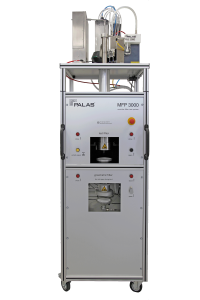

MFP 3000 G

MFP 3000 G
Product Page
MFP System Brochure

Advantages & Use

  • Simultaneous measurement of raw gas and clean gas
  • Particle size measurement from 0.2 to 40 ยตm
  • Internationally comparable measurement results
  • High reproducibility of the testing method
  • Measurement of high particle concentrations:ย ย > 70 mg/m3 (ISO Fine) or > 300 mg/m3ย (ISO Coarse)
  • Easy use of different test aerosols
  • Quick training and easy handling.
  • Short setup times and low maintenance
  • Flexible filter test software (FTControl)
  • Mobile and easy to move

Promoยฎ 3000

Promoยฎ3000
Product Page

Advantages & Use

  • Measuring range of 0.2 to 100 ยตmย
  • Four measuring ranges in one device โ€“ Covers a wide particle size range: 0.2 ยตm โ€“ 10 ยตm |ย 0.3 ยตm โ€“ 17 ยตm |ย 0.6 ยตm โ€“ 40 ยตm |ย 2 ยตm โ€“ 100 ยตm (specific to sensors 2300 and 2500).
  • Up to 128 size channels per rangeย
  • Calibration curves for different refractive indicesย
  • High and reproducible counting efficiencyย
  • Simple operation with a large touch display โ€“ User-friendly interface.
  • Independent calibration, cleaning, and lamp replacement โ€“ Maintenance can be performed by the customer.
  • Low maintenance and reduced operating expensesย

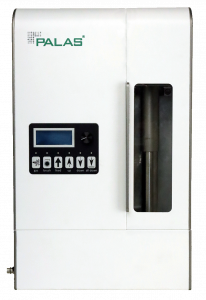

RBG System

RBG System
Product Page
RBG System Brochure

Advantages & Use

  • Overpressure operation up to 10 bar
  • Suitable for use in a vacuum
  • Very high short-term and long-term dosing constancy
  • Dispersion of virtually all non-cohesive dusts
  • Easy and fast exchange of different solid material reservoirs and dispersing covers
  • Simple determination and adjustment of the mass flow
  • Pulse mode
  • All unit parameters on LCD-display at a glance
  • Remote operation with included software
  • Device easy to clean
  • Little maintenance required
  • Low operating expenses

LSPG 16890

LSPG 16890
Product Page

Advantages & Use

  • High number of large salt particles up to 10 ฮผm with KCl
  • Highest reproducibility with regard to particle size and particle concentration
  • Particle discharge with the bipolar discharge path CD 2000
  • For air volume flows from 20 l/min up to 600 l/min
  • No corrosion, as the main components, including the dispersion nozzle, are made of plastic (POM)
  • Direct connection to the MFP system
  • Simple handling
  • Robust, durable, low maintenance
  • Cost effective

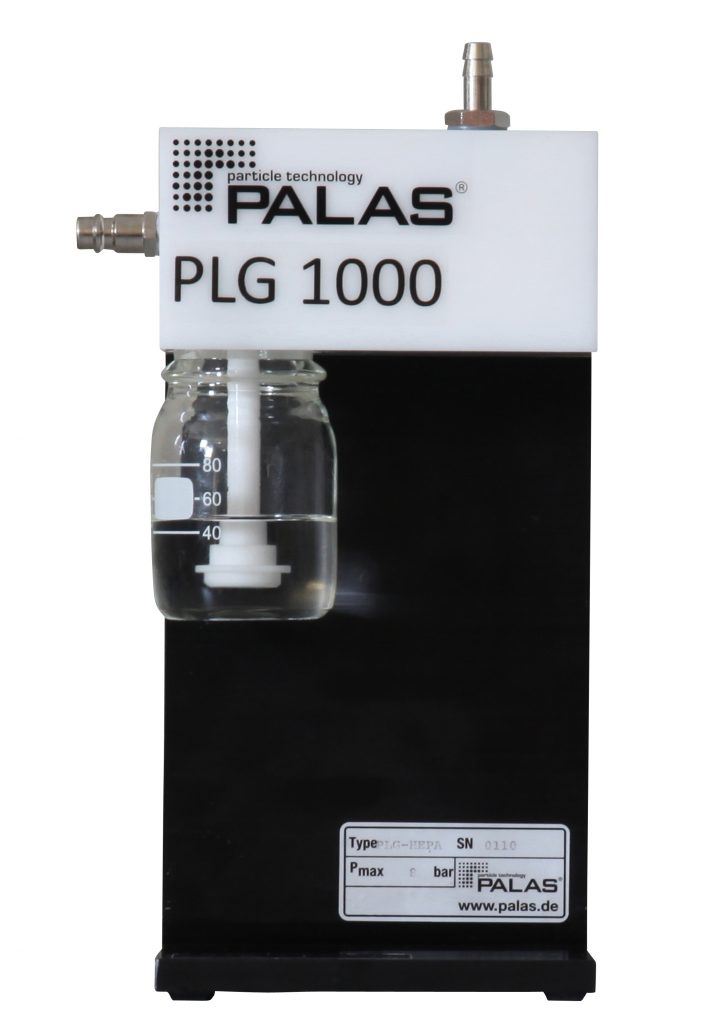

PLG 1000

PLG 1000
Product Page

Advantages & Use

  • Excellent short-term and long-term dosing constancy
  • Best reproducibility with respect to particle size distribution and particle concentration
  • Large mass volume range (very low and very high)
  • Robust design (optionally resistant against chemically aggressive liquids)
  • Compact and light
  • Easy to operate, proven in industrial applications
  • Reliable function
  • Low maintenance
